Mobile oil separation systems for wastewater treatment from OKO-tech are compact, high-performance systems for the efficient separation of light liquids such as oils, fuels and emulsions from industrial wastewater. They are particularly suitable for temporary applications where fast, compliant and reliable oil-water separation is required, for example on construction sites, in the event of spills or accidents, and in mobile environmental applications.
Thoughtful engineering, robust construction and flexible equipment options make the mobile oil separation system a versatile solution for a wide range of applications.
control technology
breaking system (EBS in
accordance with EN 858-2,
Annex B)
with optional remote maintenance
module
stable positioning
stability
Optional flotation module
pH and turbidity at the treated
water outlet
wastewater inlet and outlet
Vorteile
- Light liquid separator in accordance with EN 858 with optional emulsion breaking module (EBS)
- Reduced CO₂ emissions through fewer waste transportation requirements
- Reuse of treated wastewater for refilling the oil separator
- Reduced volume of waste requiring disposal
- Also suitable for emergency response applications involving spills of mineral oils and other light liquids
Oil Separation and Emulsion Breaking Technology

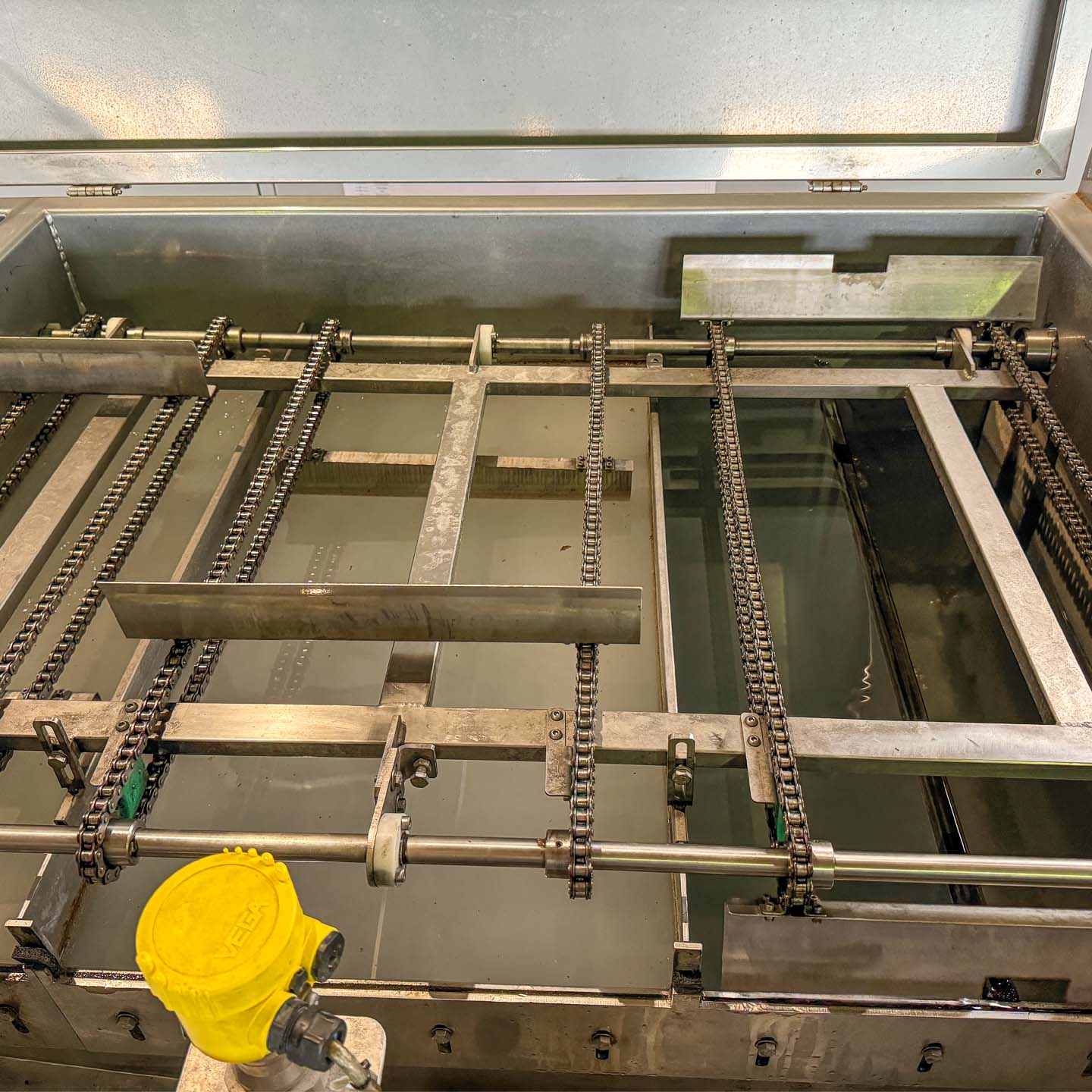

Separation is achieved through physical separation in a continuous-flow process. Light liquids such as mineral oils and fuels rise to the surface due to differences in density and are subsequently separated from the wastewater.
An optional coalescence stage improves the retention of finely dispersed oil droplets. For highly emulsified wastewater, an optional emulsion breaking module (EBS) is available. It breaks stable emulsions and significantly improves the overall separation performance.
Sensors and Control Technology
For process monitoring, the mobile oil separation system is equipped with modern sensor technology that continuously monitors relevant parameters such as wastewater flow rate, pH and turbidity at the treated water outlet.

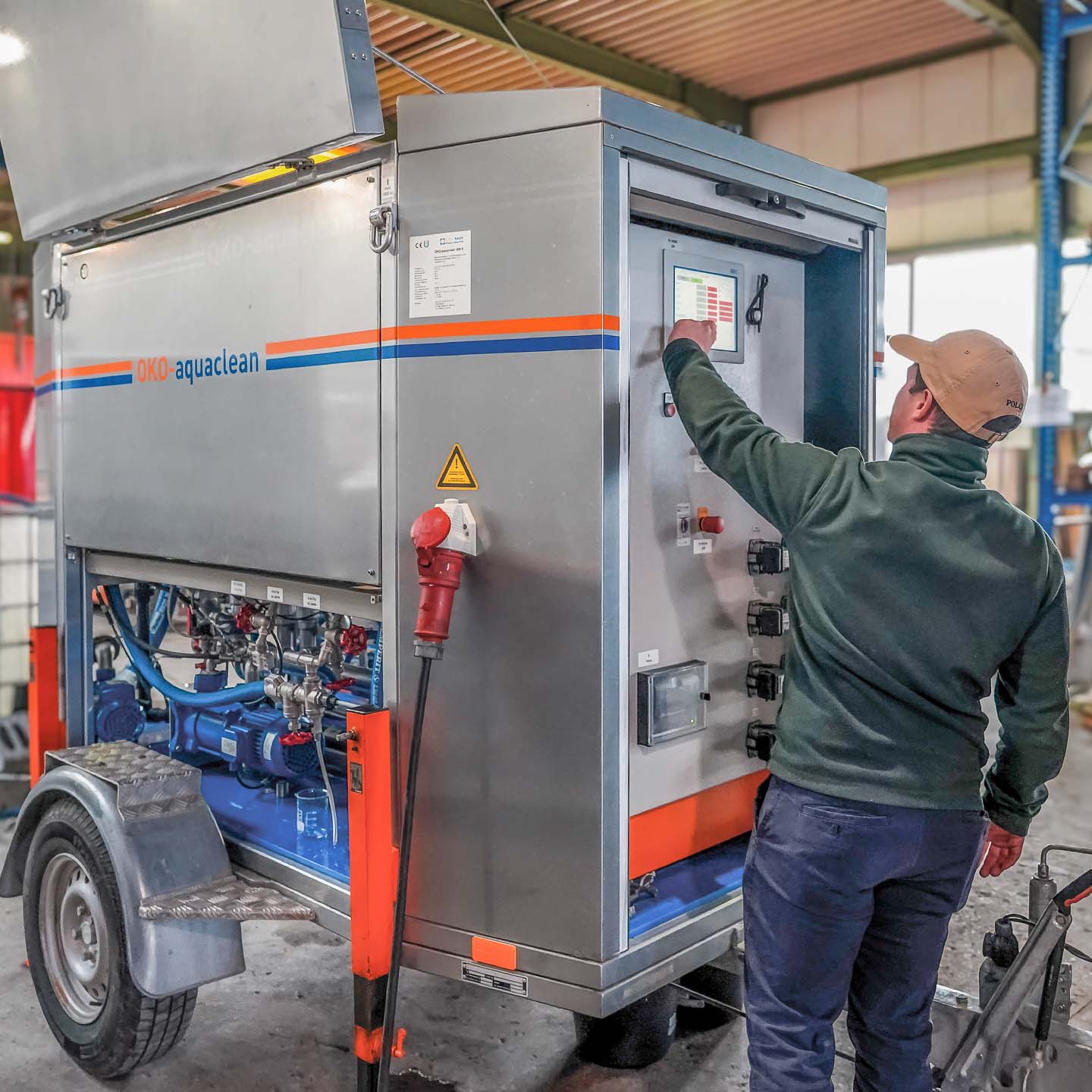

The system is controlled by a PLC with a user-friendly interface. An optional remote maintenance module also enables convenient remote monitoring and diagnostics, which is particularly advantageous for mobile or decentralised applications.
Construction and Mobility

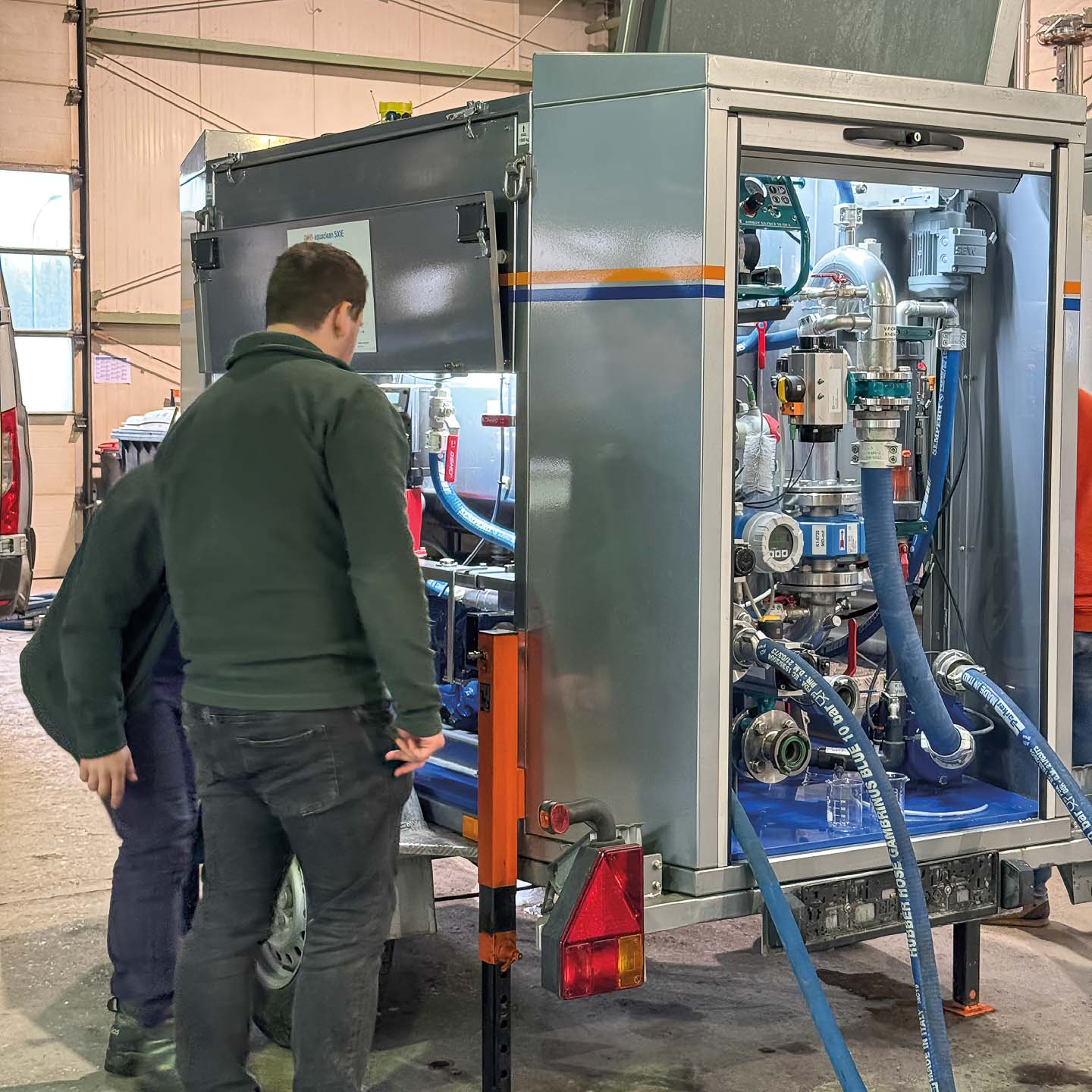

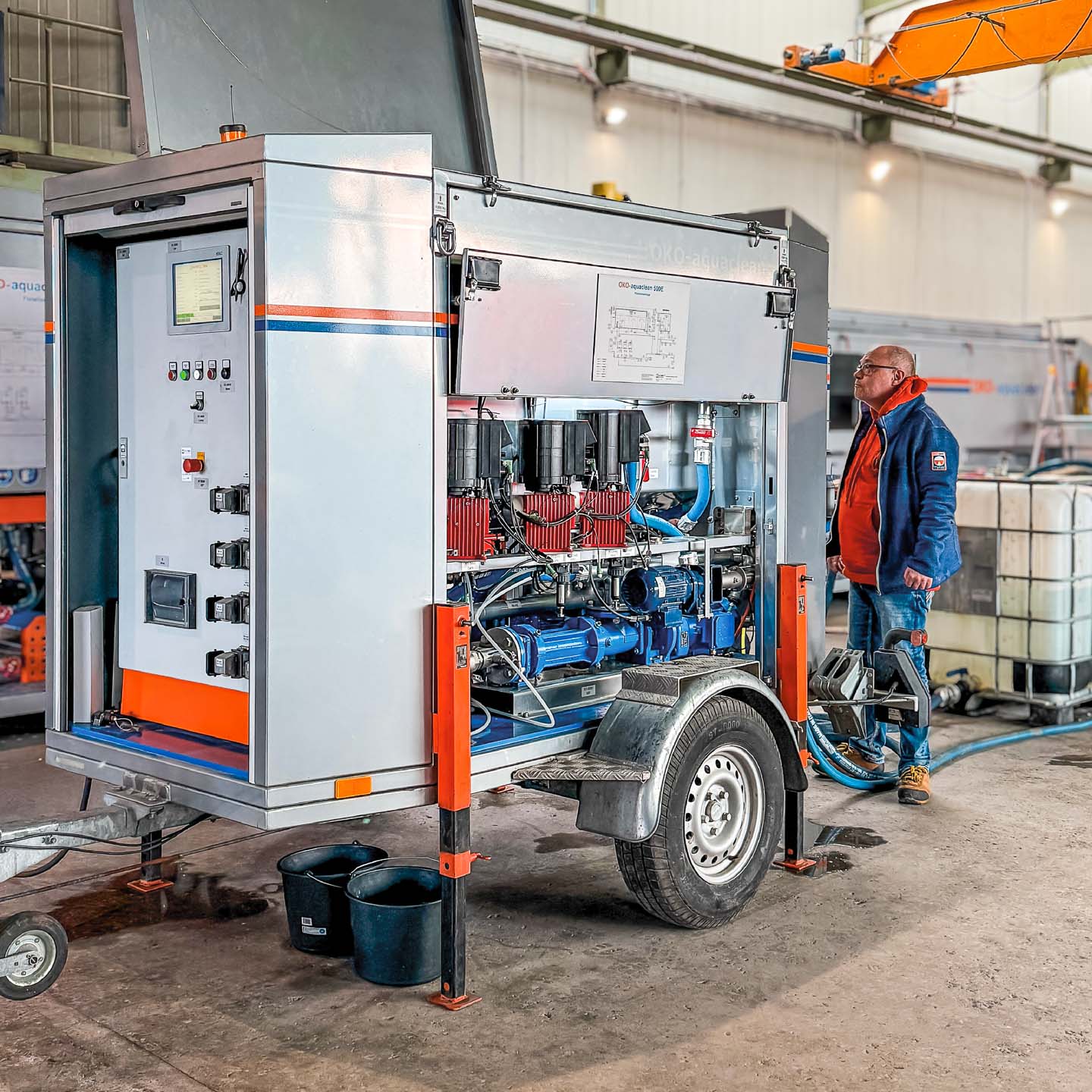

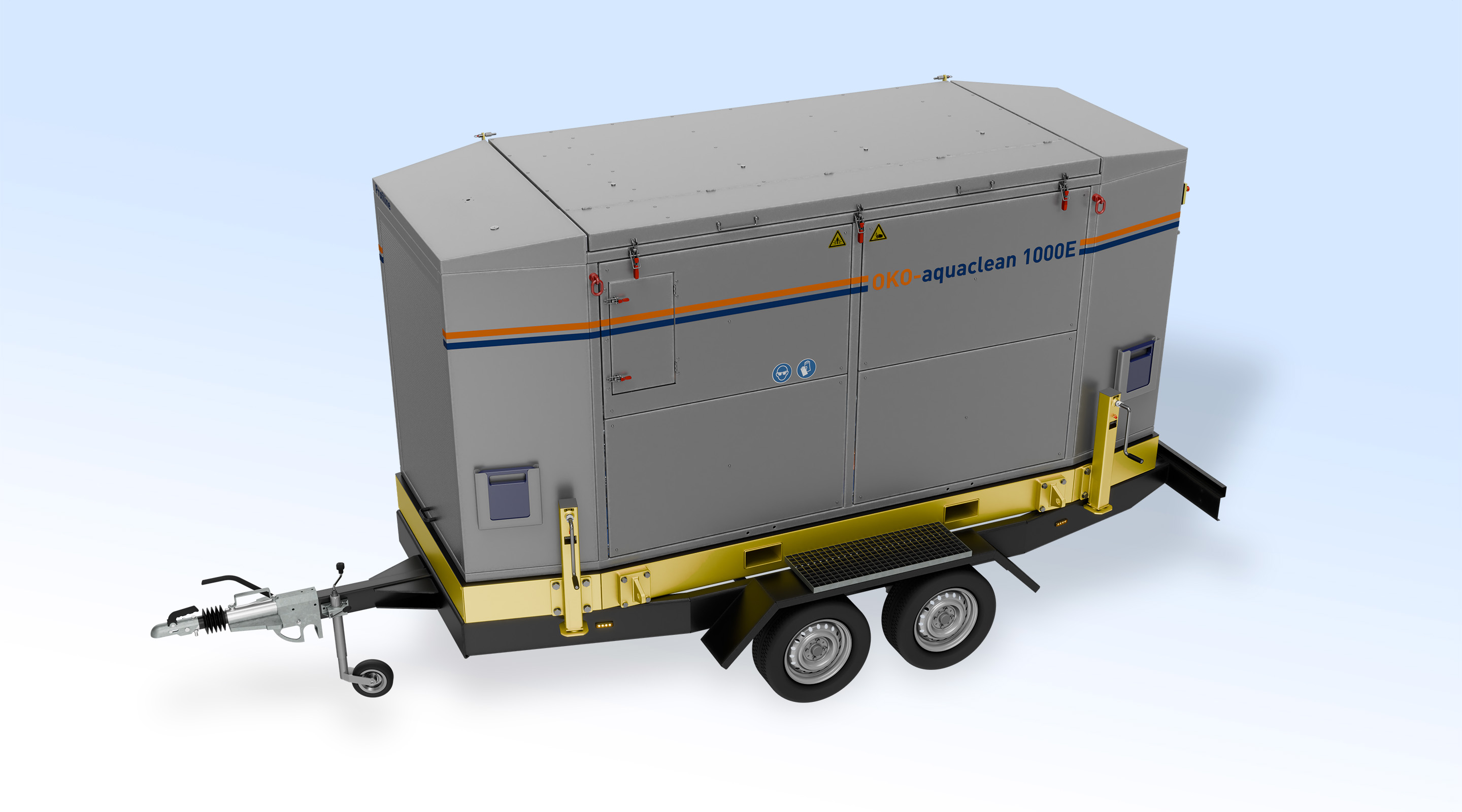

The complete treatment technology is installed in a standard hook-lift container, which also serves as a secondary containment basin. This provides a compact and functional system design.
Adjustable heavy-duty support legs ensure stable positioning even on uneven ground, while the system can be transported easily by truck or trailer.
Optional Extension: Flotation Module
The mobile oil separation system can optionally be equipped with an integrated dissolved air flotation module. This provides additional separation of fine suspended solids and emulsified contaminants, such as those found in industrial cleaning wastewater and vehicle washing applications.
Mobile Oil Separation System for Wastewater Treatment
With the OKO-aquaclean 1000 Mobile, OKO-tech provides a versatile solution for flexible on-site wastewater treatment. The combination of robust engineering, intelligent control technology and modular expansion options makes the system suitable for a wide range of mobile applications where effective oil-water separation and practical operation are required.
